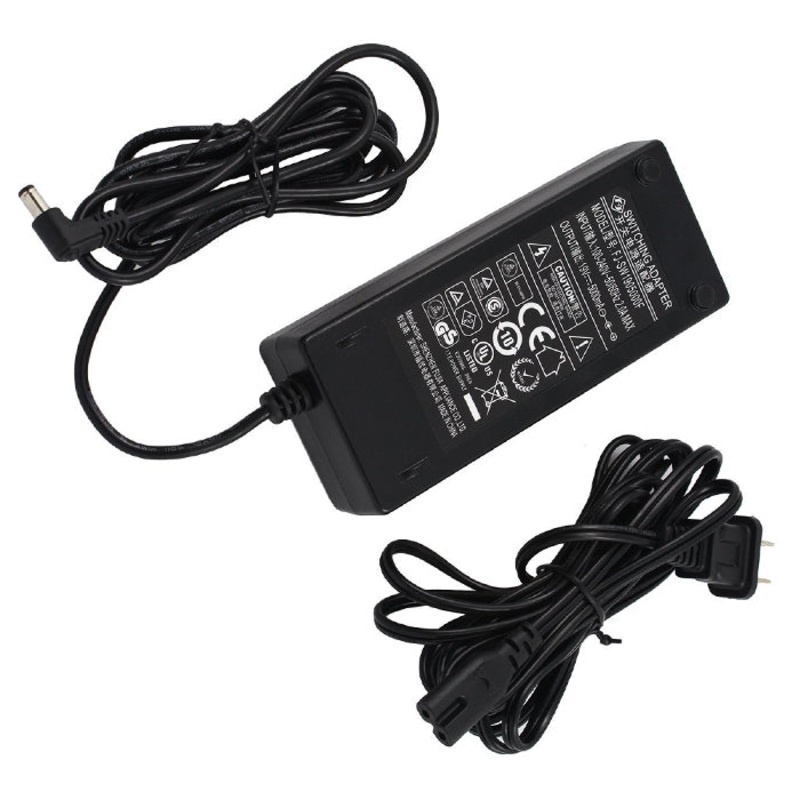

Pxel Power Switch Adapter for Yongnuo YN160 YN300 YN600 YN216 YN308 YN608 LED Video Light
You can use this AC power adapter charger for Yongnuo LED Video Light YN160, YN300, YN600AC Input Detail:1) AC Input Voltage Range: 100-240V2) AC Input Current: 1800mA3) Input Frequency Range: 47-63Hz4) No Load Power Consumption:
You can use this AC power adapter charger for Yongnuo LED Video Light YN160, YN300, YN600
AC Input Detail:
1) AC Input Voltage Range: 100-240V
2) AC Input Current: 1800mA
3) Input Frequency Range: 47-63Hz
4) No Load Power Consumption: <0.5W
5) Inrush Current: 30A
6) Hold Up Time: 5ms Min.at100Vac input and output Max .Load.
7) Rise Time: 30 ms Max
8) Line Regulation: 2%
9) Leakage Current: < 0.25mA
DC Output Detail:
1) DC Voltage Range: 12V
2) DC Current Range: 100-5000mA
3) Total Regulation:
4) Ripple & Noise: 100 m Vp-p
5) Working Efficiency: 80%
6) Protections: Short Circuit Protection, Over Voltage Protection, Over Current Protection, Open Circuit
Protection
Environmental Requirement:
1) Operating Temperature: 0 degree — +40 degree
2) Storage Temperature: -10 degree — +55 degree
3) Operating Humidity: 5%(0 degree)~90%(40 degree) 72h Full Load
4) Storage Humidity: 3%-98%
